Macchine per incidere stridenti di CNC del blocchetto lineare GHH30CA del binario di guida di Taiwan SHAC
1. Tipo: blocchetto lineare del binario di guida
2. Dimensione:
Numero del pezzo | GHH30CA |
Heigh del blocco | 45 millimetri |
Larghezza del blocco | 60 millimetri |
Lunghezza di blocco | 97,4 millimetri |
3. Caratteristica:
(1) blocchetto lineare del binario di guida
(2) origine di Taiwan
(3) minimo rumoroso, attrito basso
(4) garanzia di qualità

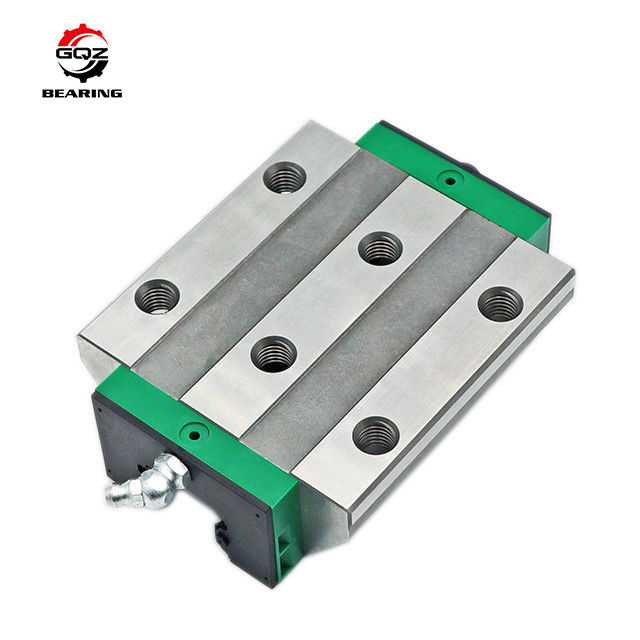

4. Sopportare le foto:
5.We inoltre assicurano i cuscinetti seguenti:
Numero del pezzo |
Componets dimensione |
Dimensione del blocco millimetro |
Dimensione della ferrovia millimetro |
Dimensione di Bolt |
dinamica caricamento tasso |
statico caricamento tasso |
Coppia di torsione statica kgf.m |
|||||||||||||||||||||
H | H1 | N | W | B | B1 | C | L1 | L | K1 | G | M×L | T | H2 | H3 | WR | Ora | D | h | d | P | E | millimetro | C (kN) | C0 (kN) | SIG. | Mp | MIO | |
GHH 15CA | 28 | 4,3 | 9,5 | 34 | 26 | 4 | 26 | 39,4 | 61,4 | 10 | 5,3 | M4×5 | 6 | 7,95 | 7,7 | 15 | 15 | 7,5 | 5,3 | 4,5 | 60 | 20 | M4×16 | 11,38 | 16,97 | 0,12 | 0,10 | 0,10 |
GHH 20CA | 30 | 4,6 | 12 | 44 | 32 | 6 | 36 | 50,5 | 77,5 | 12,25 | 12 | M5×6 | 8 | 6 | 6 | 20 | 17,5 | 9,5 | 8,5 | 6 | 60 | 20 | M5×16 | 17,75 | 27,76 | 0,27 | 0,20 | 0,20 |
GHH 20HA | 50 | 65,2 | 92,2 | 12,6 | 21,18 | 35,9 | 0,35 | 0,35 | 0,35 | |||||||||||||||||||
GHH 25CA | 40 | 5,5 | 12,5 | 48 | 35 | 6,5 | 35 | 58 | 84 | 15,7 | 12 | M6×8 | 8 | 10 | 9 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6×20 | 26,48 | 36,49 | 0,42 | 0,33 | 0,33 |
GHH 25HA | 50 | 78,6 | 104,6 | 18,5 | 32,75 | 49,44 | 0,56 | 0,57 | 0,57 | |||||||||||||||||||
GHH 30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 70 | 97,4 | 20,25 | 12 | M8×10 | 8,5 | 9,5 | 13,8 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8×25 | 38,74 | 52,19 | 0,66 | 0,53 | 0,53 |
GHH 30HA | 60 | 93 | 120,4 | 21,75 | 47,27 | 69,16 | 0,88 | 0,92 | 0,92 | |||||||||||||||||||
GHH 35CA | 55 | 7,5 | 18 | 70 | 50 | 10 | 50 | 80 | 112,4 | 20,6 | 12 | M8×12 | 10,2 | 16 | 19,6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | M8×25 | 49,52 | 69,16 | 1,16 | 0,81 | 0,81 |
GHH 35HA | 72 | 105,8 | 138,2 | 22,5 | 60,21 | 91,63 | 1,54 | 1,40 | 1,40 | |||||||||||||||||||
GHH 45CA | 70 | 9,5 | 20,5 | 86 | 60 | 13 | 60 | 97 | 139,4 | 23 | 12,9 | M10×17 | 16 | 18,5 | 30,5 | 45 | 38 | 20 | 17 | 14 | 105 | 22,5 | M12×35 | 77,57 | 102,71 | 1,98 | 1,55 | 1,55 |
GHH 45HA | 80 | 128,8 | 171,2 | 28,9 | 94,54 | 136,46 | 2,63 | 2,68 | 2,68 | |||||||||||||||||||
GHH 55CA | 80 | 13 | 23,5 | 100 | 75 | 12,5 | 75 | 117,7 | 166,7 | 27,35 | 12,9 | M12×18 | 17,5 | 22 | 29 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14×45 | 114,44 | 148,33 | 3,69 | 2,64 | 2,64 |
GHH 55HA | 95 | 155,8 | 204,8 | 36,4 | 139,35 | 196,2 | 4,88 | 4,57 | 4,57 | |||||||||||||||||||
GHH 65CA | 90 | 15 | 31,5 | 126 | 76 | 25 | 70 | 144,2 | 200,2 | 43,1 | 12,9 | M16×20 | 25 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16×50 | 163,63 | 215,33 | 6,65 | 4,27 | 4,27 |
GHH 65HA | 120 | 203,6 | 259,6 | 47,8 | 208,36 | 303,13 | 9,38 | 7,38 | 7,38 |
Se volete comprare SHAC GHH30CA blocco lineare, contattici appena.
