Name: 51110 Thrust Ball Bearing 50x70x14mm Single Row Axial
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: 5110
Price: 499.10 USD
Availability: InStock

MOQ:	1.pcs
prezzo:	USD0.1-1000/PC
Imballaggio standard:	1pc/plastic bag + color box + carton + plywood pallets 2. wooden box 3. as your requirements
Periodo di consegna:	2 ~ 5 working days
Metodo di pagamento:	T/T, Western Union,Paypal,
Capacità di approvvigionamento:	100000PCS/Week

Dettagli Informazioni

Descrizione del prodotto

Informazioni dettagliate

Place of Origin

CHINA

Marca

Optional

Certificazione

ISO9001

Model Number

5110

Structure:

Trust

Type:

ball

Size:

12*26*9mm

Seals Type:

Open

Cage:

nylon; steel; brass; bronze

Clearance:

C0,C1,C2,C3

Weight:

0.022kg

Package:

original brand package

Evidenziare:

50x70x14mm thrust ball bearing

single row axial bearing

thrust ball bearing with warranty

Descrizione del prodotto

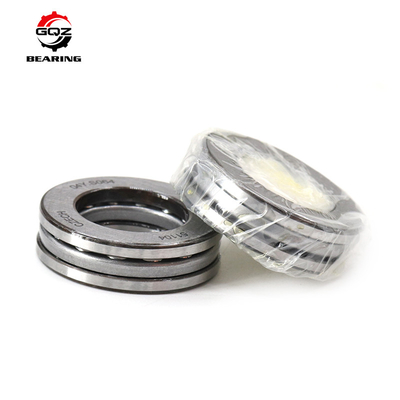

High Precision Single Row Flat Axial Ball Bearing 51110 Thrust Ball Bearings for Machinery

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Series:	51110
d - Bore:	50mm
Cup Outer Diameter:	70mm
B - Cone Width:	14mm
Bearing Weight:	0.16kg

Thrust ball bearing models we can offer:

bearing code	d	D	B	C	C0	Pu	minimum load factor	reference speed	limiting speed	mass
	mm	mm	mm	KN	KN	KN	A	r/min	r/min	kg
51112	60	85	17	41,6	122	4,55	0,077	3600	5000	0,30
51212	60	95	26	62,4	150	5,6	0,12	2800	3800	0,65
51312	60	110	35	101	224	8,3	0,26	2200	3000	1,35
51412 M	60	130	51	199	430	16	0,96	1600	2200	3,10
51113	65	90	18	37,7	108	4	0,06	3400	4800	0,33
51213	65	100	27	63,7	163	6	0,14	2600	3600	0,78
51313	65	115	36	106	240	8,8	0,30	2000	3000	1,50
51413 M	65	140	56	216	490	18	1,2	1500	2200	4,00
51114	70	95	18	40,3	120	4,4	0,074	3400	4500	0,35
51214	70	105	27	65	173	6,4	0,16	2600	3600	0,79
51314	70	125	40	135	320	11,8	0,53	1900	2600	2,00
51414 M	70	150	60	234	550	19,3	1,6	1400	2000	5,00
51115	75	100	19	44,2	146	5,5	0,11	3200	4300	0,40
51215	75	110	27	67,6	183	6,8	0,17	2400	3400	0,83
51315	75	135	44	163	390	14	0,79	1700	2400	2,60
51415 M	75	160	65	251	610	20,8	1,9	1300	1800	6,75
51116	80	105	19	44,9	153	5,7	0,12	3000	4300	0,42
51216	80	115	28	76,1	208	7,65	0,22	2400	3400	0,91
51316	80	140	44	159	390	13,7	0,79	1700	2400	2,70
51416 M	80	170	68	270	670	22,4	2,3	1200	1700	7,95
51117	85	110	19	46,2	163	6	0,14	3000	4300	0,44
51217	85	125	31	97,5	275	9,8	0,39	2200	3000	1,20
51317	85	150	49	190	465	16	1,1	1600	2200	3,55
51417 M	85	180	72	286	750	24	2,9	1200	1600	9,45
51118	90	120	22	59,2	208	7,5	0,22	2600	3800	0,65
51218	90	135	35	119	325	11,4	0,55	2000	2800	1,70
51318	90	155	50	195	500	16,6	1,3	1500	2200	3,80
51418 M	90	190	77	307	815	25,5	3,5	1100	1500	11,0
51120	100	135	25	85,2	290	10	0,44	2400	3200	0,97

51110 Thrust Ball Bearing 50x70x14mm Single Row Axial 0

51110 Thrust Ball Bearing 50x70x14mm Single Row Axial 1

51110 Thrust Ball Bearing 50x70x14mm Single Row Axial 2

FAQ

How does the 51101 Thrust Ball Bearing handle high-speed operations compared to other bearings?

The 51101 Thrust Ball Bearing is optimized for high-speed operations due to its design which minimizes internal friction. The precision of its ball elements and raceways allows for smoother rotation at high speeds, reducing heat generation and wear. Compared to other types of bearings, such as roller bearings, the 51101 can handle higher RPMs while maintaining stability and efficiency, making it suitable for applications that demand both speed and axial load support.

What are the proper installation techniques for the 51101 Thrust Ball Bearing to ensure optimal performance?

Correct installation of the 51101 Thrust Ball Bearing is crucial for its optimal performance. Start by ensuring the mounting surface is clean and free of any debris that could damage the bearing. Use appropriate tools or presses to mount the bearing without applying excessive force directly onto the balls. Alignment is critical; make sure the bearing is centered and parallel to the shaft to avoid uneven loading. Following the manufacturer's guidelines for preload and adjustment will help achieve the best performance and longest service life.

What maintenance practices should be followed to extend the service life of the 51101 Thrust Ball Bearing?

Regular maintenance of the 51101 Thrust Ball Bearing includes proper lubrication, cleaning, and inspection. Use high-quality lubricants that match the bearing's operating conditions to reduce friction and wear. Regularly check for signs of wear, such as noise, vibration, or temperature increase, which can indicate issues that need attention. Keeping the bearing clean and protected from contaminants is also essential to prevent premature failure. By adhering to a maintenance schedule, you can significantly extend the service life of the 51101 bearing.
