High Quality XSA140414N External Gear Slewing Bearing 503.3x417x56mm Cross Roller Bearing

High Quality XSA140414N External Gear Slewing Bearing 503.3x417x56mm Cross Roller Bearing

Marchio:	GQZ
Numero di modello:	XSA140414N
MOQ:	5 pezzi
prezzo:	$580 ~ $880
Tempi di consegna:	3 giorni lavorativi dopo aver ricevuto il pagamento
Termini di pagamento:	T/T o Western Union o PayPal

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Certificazione:

ISO9001/ISO14001/GJB9001

Materiale:

GCr15 che sopporta acciaio

Nome del prodotto:

Cuscinetti orientabili ad alta precisione

Identificazione (millimetro):

OD ((mm):

50.3.3

Larghezza (mm):

Valutazione di precisione:

Struttura:

Cilindrico

Garanzia:

12 mesi

Imballaggi particolari:

Imballato in cartone in primo luogo, e poi rinforzato con custodia in legno per l'imballaggio es

Capacità di alimentazione:

3.000 pezzi al mese

Descrizione del prodotto

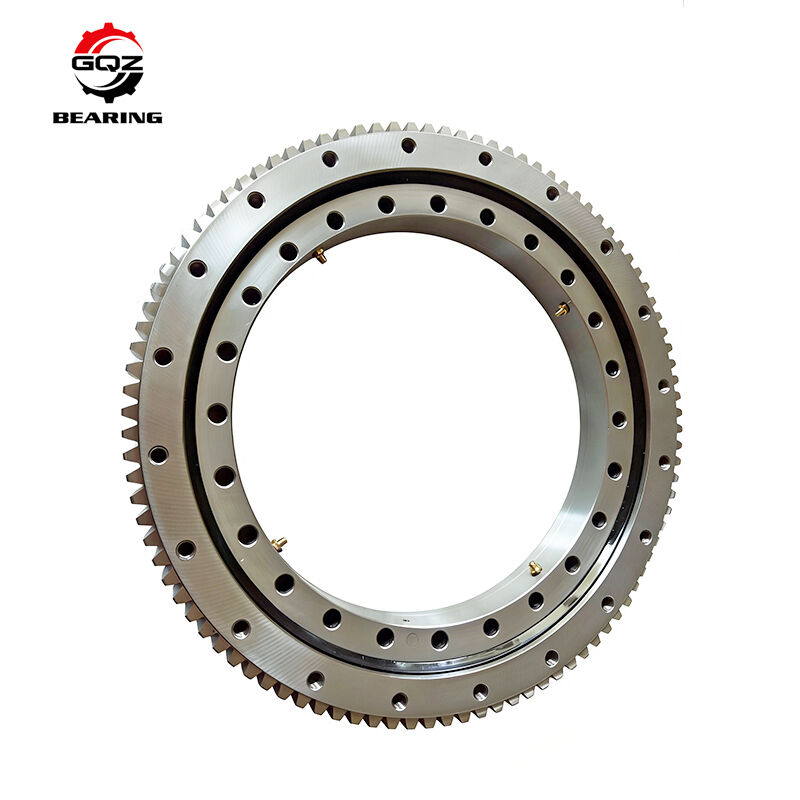

High Quality XSA140414N External Gear Slewing Bearing 503.3x417x56mm Cross Roller Bearing

The XSA140414N External Gear Slewing Bearing is a high quality, high precision cross roller bearing designed for rotary platforms, CNC machinery, industrial automation, and mechanical systems. With dimensions of 503.3x417x56mm, this slewing bearing with external gear ensures efficient torque transmission, smooth rotation, and reliable load performance.

Built with a cross cylindrical roller structure, it supports radial, axial, and moment loads simultaneously, making it ideal for turntable bearings, precision positioning systems, and heavy-duty rotary applications.

This external gear cross roller slewing bearing offers high rigidity, stable operation, and long service life, widely used in CNC equipment, automation systems, construction machinery, and industrial applications.

Key Features

External Gear Design: Enables direct drive and efficient torque transmission.
Cross Cylindrical Roller Structure: Ensures high precision and smooth rotation.
High Load Capacity: Supports radial, axial, and moment loads simultaneously.
High Quality Manufacturing: Stable performance and long service life.
Compact & Rigid Structure: Suitable for space-limited installations.
Wide Application Compatibility: Ideal for various rotary systems.

Technical Specifications

Parameter	Specification
Model	XSA140414N
Inner Diameter (ID)	417 mm
Outer Diameter (OD)	503.3mm
Width (H)	56 mm
Type	Slewing Bearing (External Gear)
Structure	Crossed Cylindrical Rollers
Material	Bearing Steel
Accuracy Class	P5 / P4 optional
Preload	Custom
Application	Rotary Platforms, CNC Machinery, Automation Systems

Applications

Rotary Platforms – Smooth and accurate rotational control.
CNC Machinery – Precision motion and positioning systems.
Industrial Automation – Stable and efficient operation.
Construction Machinery – Reliable performance under load.

Additional Specifications

INA	Weight (Kg)	Da	di	Di	da	La	Li	ni	na	A	B	C	D	Preload	do	m	z
XSA140414N	32	503.3	344	417	413	455	368	24	20	0.04	0.04	0.06	0.06	0.01-0.03	495	5	99
XSA140544N	44	640.3	474	547	543	585	498	32	28	0.04	0.04	0.07	0.06	0.01-0.03	630	6	105
XSA140644N	52	742.3	574	647	643	685	598	36	32	0.05	0.05	0.08	0.07	0.01-0.04	732	6	122
XSA140744N	59	838.1	674	747	743	785	698	40	36	0.05	0.05	0.08	0.08	0.01-0.04	828	6	138
XSA140844N	71	950.1	774	847	843	885	798	40	36	0.06	0.06	0.09	0.08	0.01-0.04	936	8	117
XSA140944N	77	1046.1	874	947	943	985	898	44	40	0.06	0.06	0.09	0.09	0.01-0.05	1032	8	129
XSA141094N	91	1198.1	1024	1097	1093	1135	1048	48	44	0.07	0.07	0.11	0.11	0.01-0.05	1184	8	148

Why Choose GQZ Bearing?

Geared Slewing Bearing Expertise
High Precision Cross Roller Technology
Stable Performance for Industrial Applications
Customization & Global Delivery Support

Q1: Does XSA140414N have an external gear?

A1: Yes, it features an external gear for direct drive systems.

Q2: Is it suitable for CNC machinery?

A2: Yes, it is widely used in CNC and automation equipment.

Q3: Can it be customized?

A3: Yes, customization is available for preload, precision grade, and gear configuration.

Upgrade your system with XSA140414N External Gear Slewing Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
