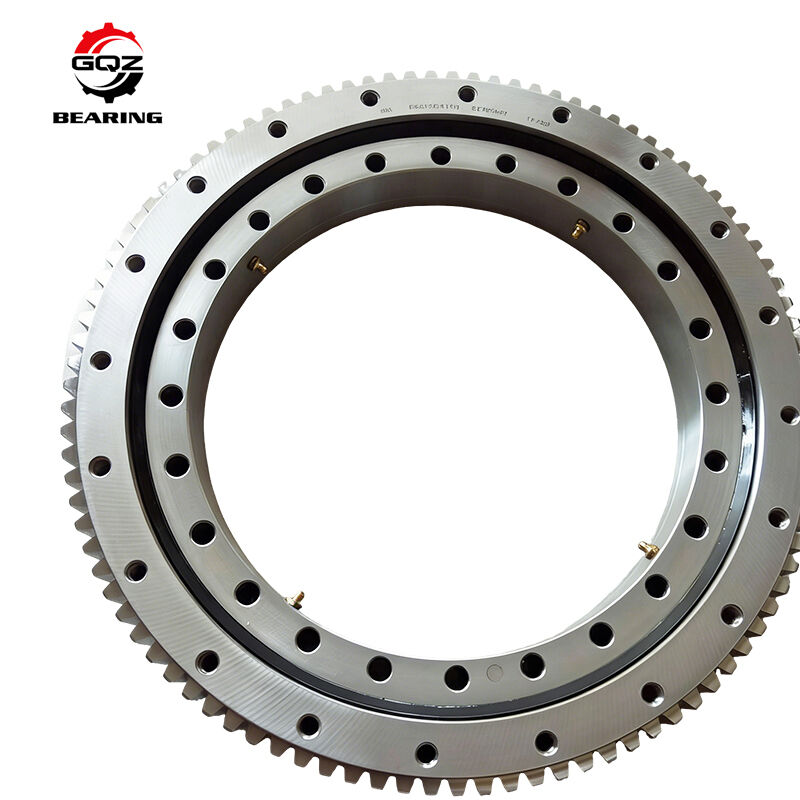

Cross Roller Bearing XSA140544N External Gear Slewing Ring Bearing 474.56x640.3x56mm

Cross Roller Bearing XSA140544N External Gear Slewing Ring Bearing 474.56x640.3x56mm

Marchio:	GQZ
Numero di modello:	XSA140414N
MOQ:	5 pezzi
prezzo:	$580 ~ $880
Tempi di consegna:	3 giorni lavorativi dopo aver ricevuto il pagamento
Termini di pagamento:	T/T o Western Union o PayPal

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Certificazione:

ISO9001/ISO14001/GJB9001

Materiale:

GCr15 che sopporta acciaio

Nome del prodotto:

Cuscinetti orientabili ad alta precisione

Identificazione (millimetro):

OD ((mm):

640.3

Larghezza (mm):

Valutazione di precisione:

Struttura:

Cilindrico

Garanzia:

12 mesi

Imballaggi particolari:

Imballato in cartone in primo luogo, e poi rinforzato con custodia in legno per l'imballaggio es

Capacità di alimentazione:

3.000 pezzi al mese

Descrizione del prodotto

Cross Roller Bearing XSA140544N External Gear Slewing Ring Bearing 474.56x640.3x56mm

The XSA140544N External Gear Slewing Ring Bearing is a high precision crossed roller slewing bearing designed for rotary tables, CNC machinery, industrial automation systems, and construction equipment. With dimensions of 474.56x640.3x56mm, this slewing ring with external gear ensures efficient torque transmission, smooth rotation, and high load capacity.

Built with a cross cylindrical roller structure, it supports radial, axial, and moment loads simultaneously, making it ideal for turntable bearings, precision positioning systems, and heavy-duty rotary applications.

This external gear cross roller bearing offers high rigidity, compact structure, and stable performance, widely used in CNC equipment, automation systems, rotary platforms, and industrial machinery.

Key Features

External Gear Design: Enables direct drive and efficient torque transmission.
Crossed Roller Structure: Provides high precision and smooth rotational accuracy.
High Load Capacity: Handles radial, axial, and moment loads simultaneously.
Compact Slewing Ring Structure: Space-saving with strong rigidity.
Stable & Durable Performance: Suitable for continuous industrial operation.
Wide Application Range: Ideal for CNC, automation, and rotary systems.

Technical Specifications

Parameter	Specification
Model	XSA140544N
Inner Diameter (ID)	474 mm
Outer Diameter (OD)	640.3 mm
Width (H)	56 mm
Type	Slewing Ring Bearing (External Gear)
Structure	Crossed Cylindrical Rollers
Material	Bearing Steel
Accuracy Class	P5 / P4 optional
Preload	Custom
Application	CNC Machinery, Rotary Tables, Automation Systems

Applications

Rotary Tables – High precision rotation and positioning.
CNC Machinery – Stable motion control for machining systems.
Industrial Automation – Reliable operation in automated equipment.
Construction Machinery – Durable performance in heavy-duty environments.

Additional Specifications

INA	Weight (Kg)	Da	di	Di	da	La	Li	ni	na	A	B	C	D	Preload	do	m	z
XSA140414N	32	503.3	344	417	413	455	368	24	20	0.04	0.04	0.06	0.06	0.01-0.03	495	5	99
XSA140544N	44	640.3	474	547	543	585	498	32	28	0.04	0.04	0.07	0.06	0.01-0.03	630	6	105
XSA140644N	52	742.3	574	647	643	685	598	36	32	0.05	0.05	0.08	0.07	0.01-0.04	732	6	122
XSA140744N	59	838.1	674	747	743	785	698	40	36	0.05	0.05	0.08	0.08	0.01-0.04	828	6	138
XSA140844N	71	950.1	774	847	843	885	798	40	36	0.06	0.06	0.09	0.08	0.01-0.04	936	8	117
XSA140944N	77	1046.1	874	947	943	985	898	44	40	0.06	0.06	0.09	0.09	0.01-0.05	1032	8	129
XSA141094N	91	1198.1	1024	1097	1093	1135	1048	48	44	0.07	0.07	0.11	0.11	0.01-0.05	1184	8	148

Why Choose GQZ Bearing?

External Gear Slewing Bearing Expertise
High Precision Cross Roller Manufacturing
Reliable Performance for Industrial Applications
Customization & Global Delivery Support

Q1: Does XSA140544N have an external gear?

A1: Yes, it features an external gear for direct drive systems.

Q2: Is it suitable for CNC machinery?

A2: Yes, it is widely used in CNC and automation applications.

Q3: Can it be customized?

A3: Yes, customization is available for preload, accuracy class, and gear design.

Enhance your system with XSA140544N External Gear Slewing Ring Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
