Cuscinetto a sfera profondo della scanalatura
Created with Pixso. Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Marchio: GQZ /OEM
Numero di modello: 6211ZZ
MOQ: 1 pz
prezzo: USD 0.50 to 1.00
Tempi di consegna: 3-5 giorni lavorativi
Termini di pagamento: T/T, Western Union, MoneyGram
Informazioni dettagliate
Luogo di origine:
Cina
Certificazione:
ISO9001:2015
Larghezza (B):
21 mm
Applicazione:
Motori industriali, ventilatori, compressori, macchine agricole, trasportatori
Diametro esterno (D):
100 mm
Diametro interno (d):
55 mm
Materiale:
Acciaio per cuscinetti cromato GCr15
Modello di cuscinetto:
6211ZZ
Caratteristica:
Scudo antipolvere in acciaio, silenziato, preingrassato, velocità medio-alta
Tipo di sigilli:
Scudo bifacciale in acciaio ZZ
Numero di righe:
Riga singola
Classe di precisione:
P0/P6
Imballaggi particolari:
in singola scatola di imballaggio
Capacità di alimentazione:
100000 set al mese
Descrizione del prodotto
Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Product Overview

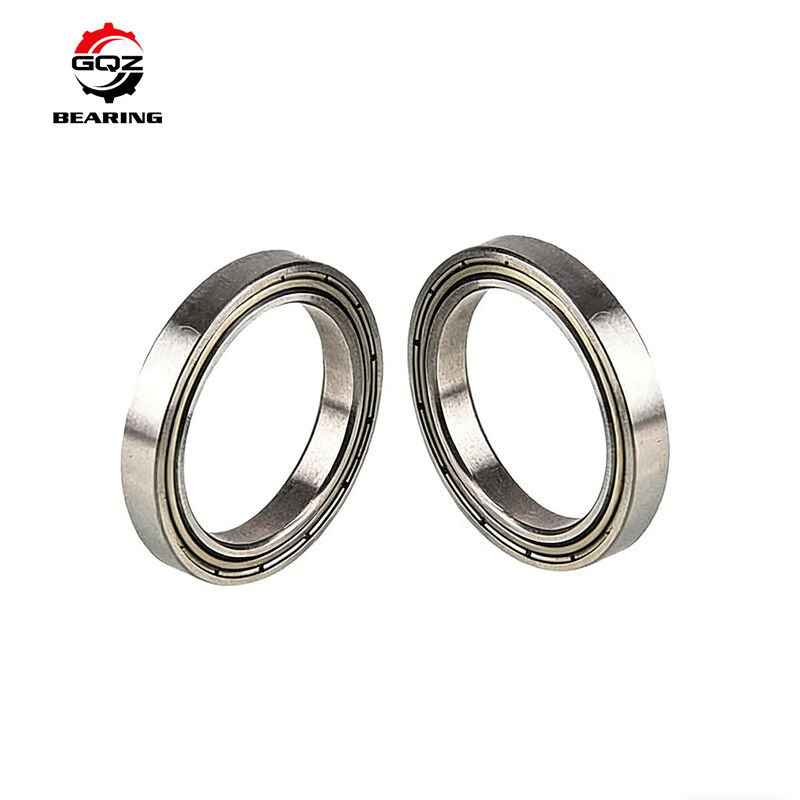

  • 6211ZZ is a single row deep groove ball bearing sized 55×100×21mm with double-sided stamped steel ZZ shields. The metal shield design blocks dust and debris, suitable for dry and clean working environments. It can withstand combined radial load and light bidirectional axial load. Pre-lubricated at factory for instant installation, this bearing runs smoothly at medium-high speed and is widely used in general industrial transmission equipment.

*Send us your inquiry now to get samples and the latest factory quotation for 6211ZZ bearings.

Key Specifications
Specification Value
Bearing Model 6211ZZ
Bore d 55 mm
Outer diameter D 100 mm
Width B 21 mm
Min chamfer r 1.5 mm
Dynamic load Cr 47.5 kN
Static load C0r 29.3 kN
Limiting speed (Grease) 7500 r/min
Limiting speed (Oil) 8600 r/min
Approximate weight 0.61 kg
Seal Type Double-sided steel shield ZZ
Clearance C0 standard, C3 optional
Precision P0 standard, P6 optional
Material GCr15 Chrome Bearing Steel
Main Features
  • Double-sided ZZ steel dust shields, effectively prevent dust contamination
  • Standard C0 normal clearance, C3 enlarged clearance optional for high-temperature conditions
  • Stamped steel cage with low friction, stable rotation and low vibration
  • Withstand radial load plus light bidirectional axial load
  • Pre-filled grease, no extra lubrication needed during initial assembly
  • P0 precision standard, P6 precision grade available on request

Typical Applications
  • General industrial motors and ventilation fans
  • Compressors and air pump equipment
  • Conveyor roller transmission machinery
  • Agricultural processing machinery
  • Light-duty gearboxes and small rotary devices

*Contact our engineering team today for professional bearing selection guidance and technical parameters.

Why Choose GQZ Bearing
  • High-purity GCr15 chrome bearing steel with strict heat treatment for long service life and wear resistance.
  • Precision ground raceways and balls ensure quiet, smooth running performance.
  • Multiple options including clearance grades and precision to match diverse working conditions.
  • Abundant spot stock for ZZ sealed deep groove bearings, support sample orders and fast bulk delivery.
  • OEM laser marking and customized packaging services for wholesale buyers.

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

FAQ

Q1: What are the dimensions of 6211ZZ?
A1: Bore 55 mm, Outer diameter 100 mm, Width 21 mm.

Q2: What does ZZ stand for?
A2: Double-sided steel dust shields to block dust and dirt.

Q3: Can it bear heavy axial load?
A3: Only suitable for light bidirectional axial load, mainly for radial loads.

Q4: Clearance options?
A4: C0 standard clearance, C3 enlarged clearance optional.

Q5: Is it pre-greased?
A5: Yes, factory pre-lubricated for easy installation.

*Place bulk orders with GQZ, enjoy stable stock, short lead time and reliable after-sales service.
